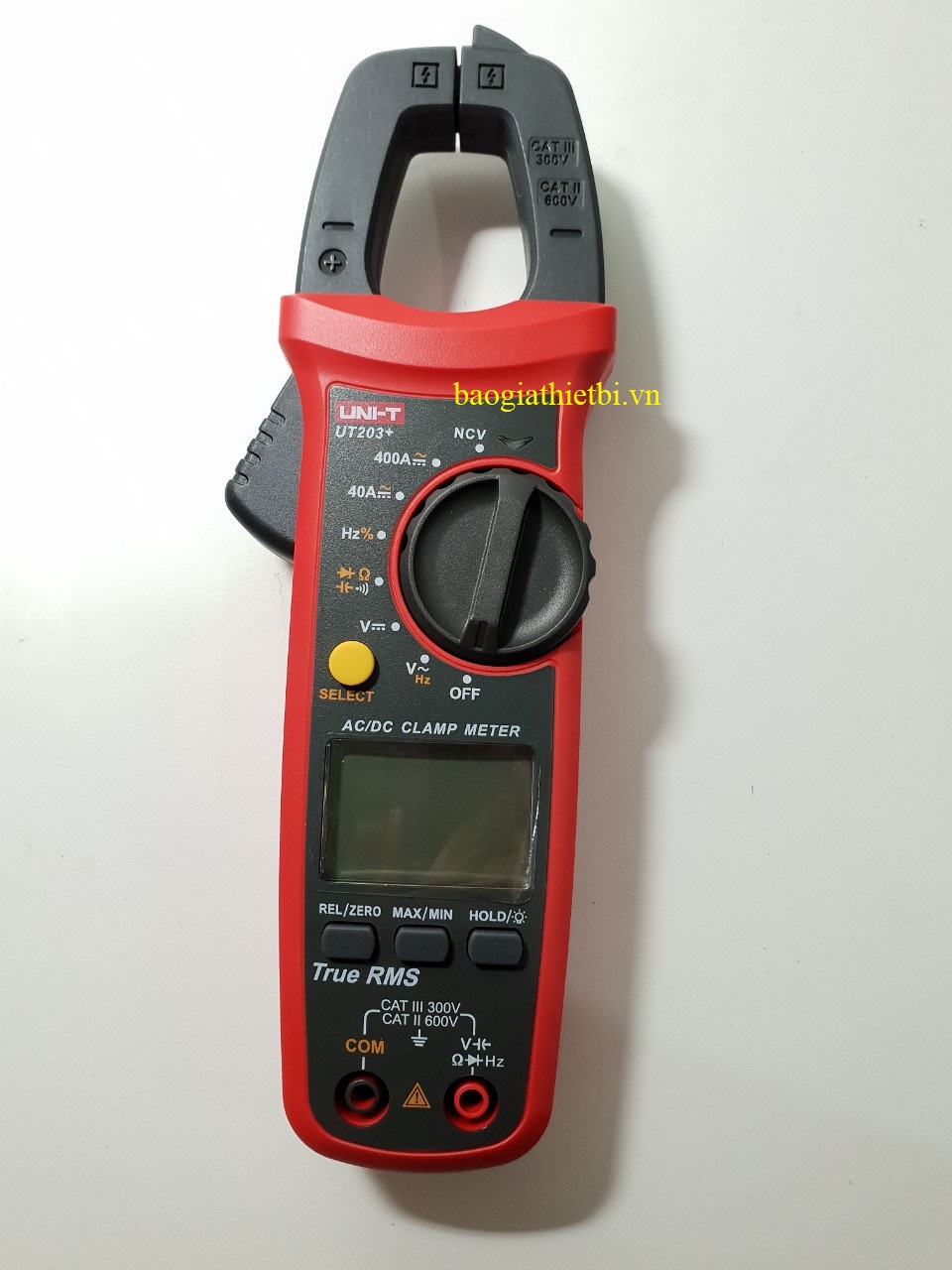

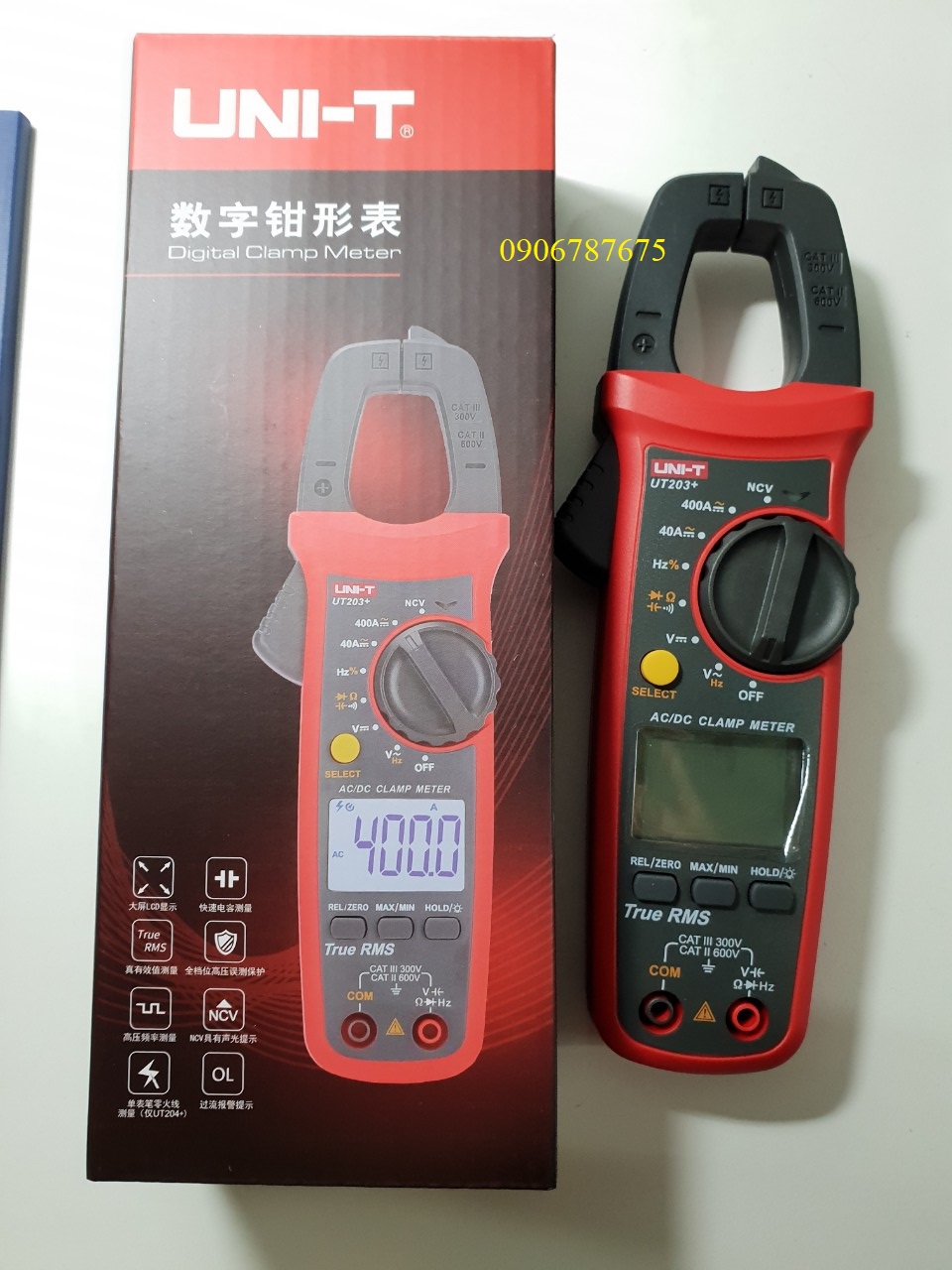

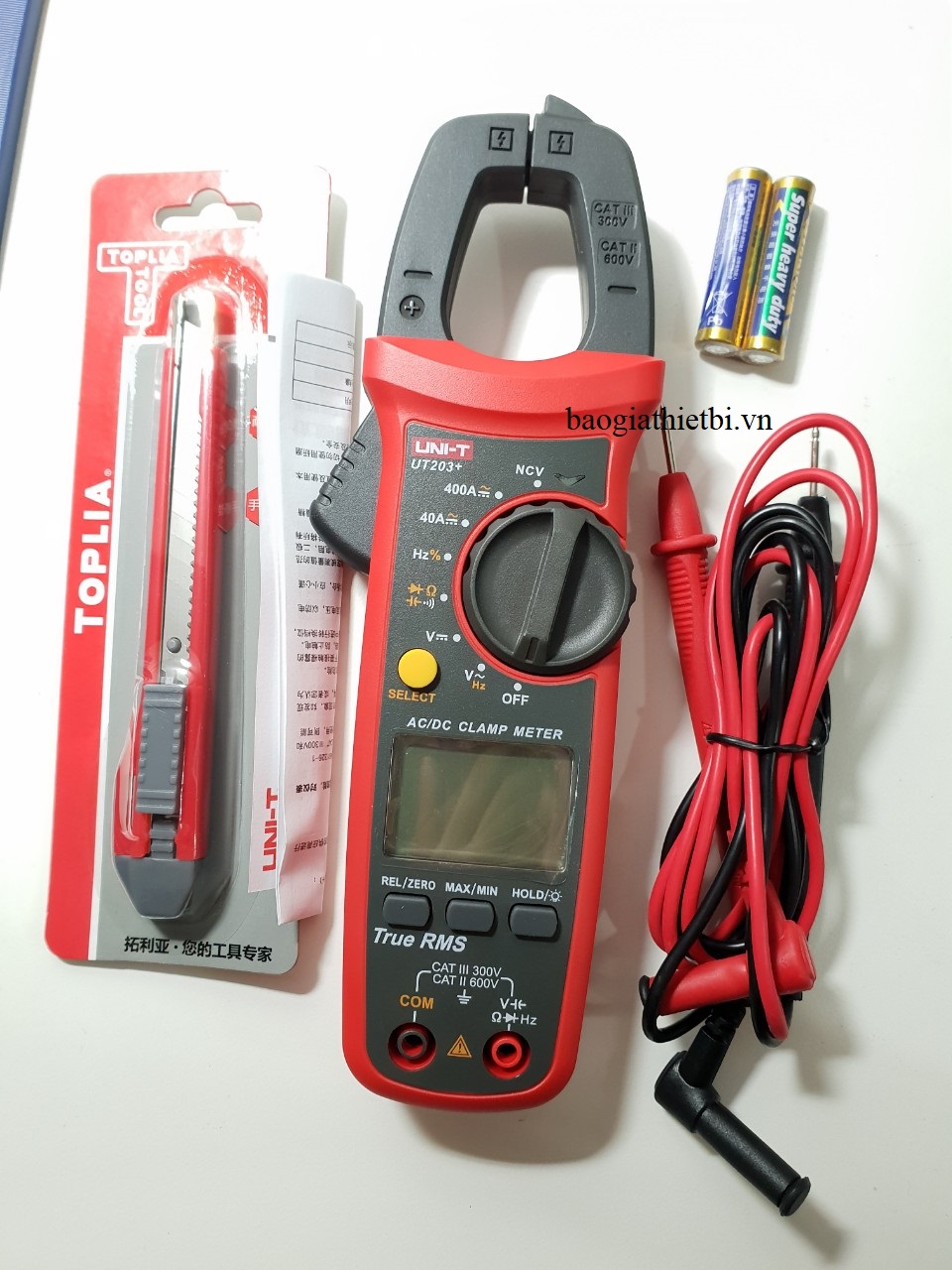

AMPE KÌM UNI-T UT203+

AMPE KÌM UNI-T UT203+:

Specifications:
Material: ABS
Safety Rating: CAT II 600V, CAT III 300V
Display Count: Max. 4000
Jaw Opening: 28mm
Auto off: 15 minutes
Range: Auto
AC Current Range: 40.00A/400.0A
AC Current Resolution: 0.01A/0.1A
DC Current Range: 40.00A/400.0A
DC Current Resolution: 0.01A/0.1A
AC Voltage Range: 4.000V/40.00V/400.0V/600V
AC Voltage Resolution: 0.001V/0.01V/0.1V/1V
AC Voltage Frequency: 10Hz~60kHz
AC Voltage Frequency Resolution: 0.01Hz~0.01kHz
DC Voltage Range: 400.0mV/4.000V/40.00V/400.0V/600V
DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
Resistance Range: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ
Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
Capacitance Range: 40.00nF/400.0nF/4.000uF/40.00uF/400.0uF/4.000mF/40.00mF
Capacitance Resolution: 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
Frequency Range: 10Hz~10MHz
Frequency Resolution: 0.01Hz~0.01MHz
Duty Cycle Range: 0.1%~99%
Duty Cycle Resolution: 0.1%
Continuity Range: 400.0Ω
Continuity Resolution: 0.1Ω
Diode Range: 4.000V
Diode Resolution: 0.001V
Operating Temperature: 0~30℃(humidity ≤ 80%RH), 30~40℃(humidity ≤ 75%RH), 40~50℃(humidity ≤ 45%RH)
Storage Temperature & Humidity: -20~60℃, ≤ 80%RH
Altitude: 2,000 meters
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 215 * 63.5 * 36mm / 8.46 * 2.5 * 1.41in
Item Weight: 268g / 9.45oz
Package Weight: 359g / 12.66oz
Package Size: 23.5 * 9.2 * 5.3cm / 9.25 * 3.62 * 2.09in
