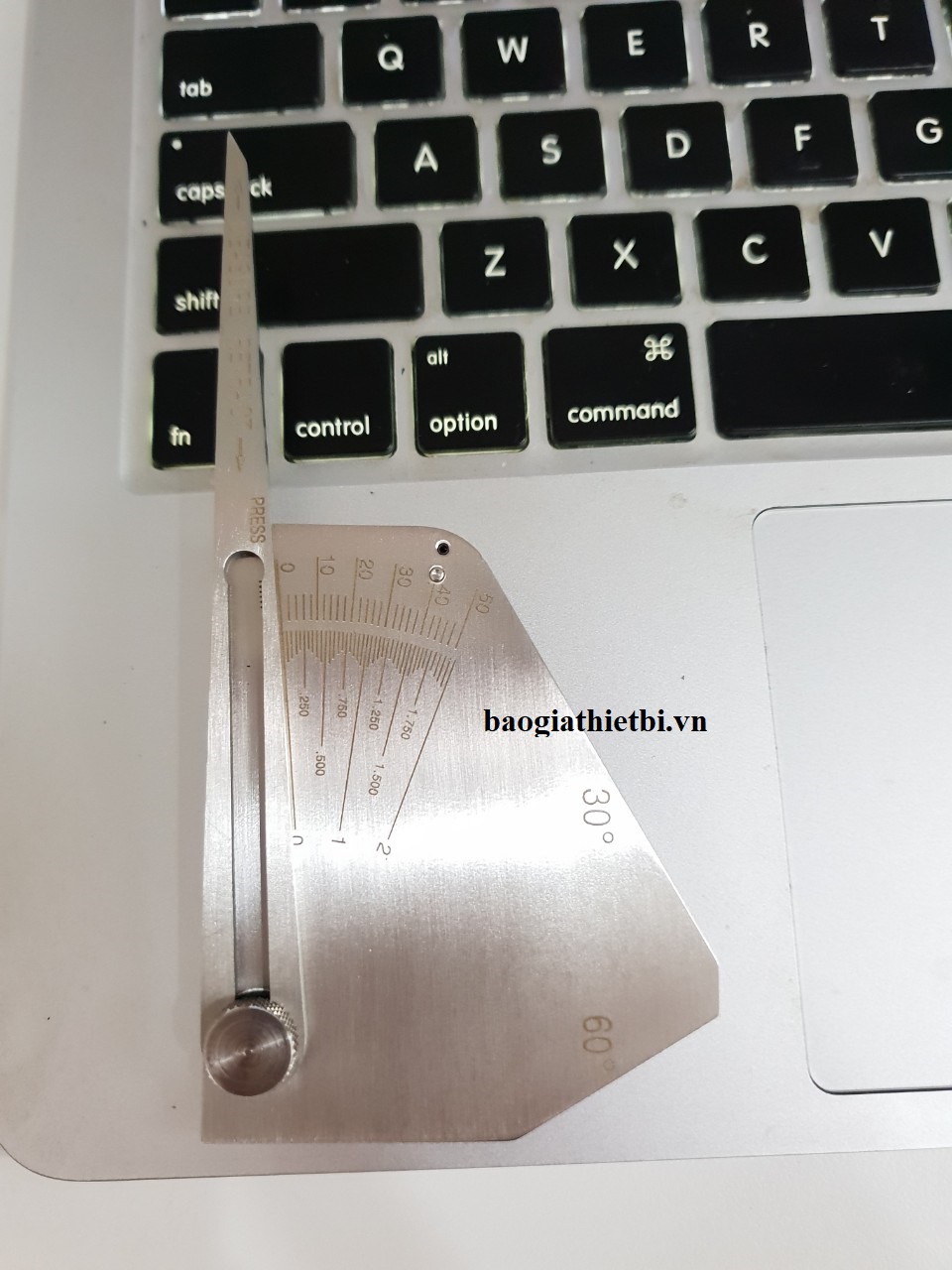

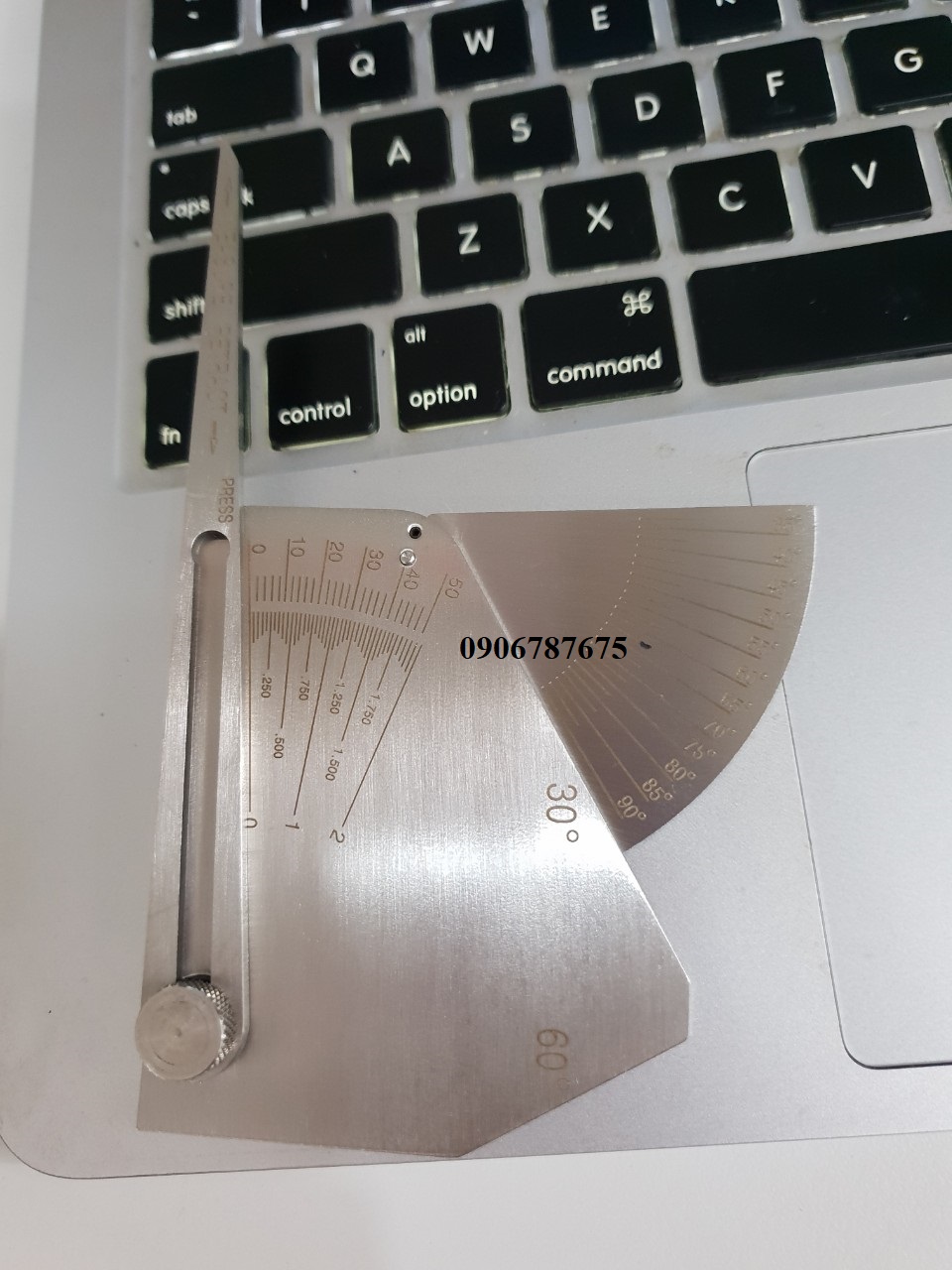

THƯỚC ĐO MỐI HÀN TLT CAT#3

THƯỚC ĐO MỐI HÀN TLT CAT#3:

Product selling point:

-Weld Gauge Welding Angel Inspection Gage Ulnar Test Ruler

-The gauge inspect angle of the skewed member: 30-90 Degree

-Laser engraving,accurate figures and increments are etched into surface

-Fillet Welding Gauge is Metric reading

-Made of stainless steel, not easy to rust, not easy to bend

-Packed in plastic box with instruction for use Specification: Material: Stainless Steel Size(LxW): Approx. 13x6.5 cm / 4.72 x 2.56 inch Metric

- 1.Angle of the skewed member: 30-90°

- 2. Theoretical Throat (in Inch): 0-1.2''

- 3. Leg Size of Fillet (in Inch): 0-1.6''

- 4. Inspection Dimension (in Inch): 0-1.6'' - Inch

- 1.Angle of the skewed member: 30-90°

- 2. Theoretical Throat (in Metric): 0-30mm

- 3. Leg Size of Fillet (in Metric): 0-40mm

- 4. Inspection Dimension (in Metric): 0-40mm Package Includes: 1 Piece SKEW-T Fillet Weld Gauge

Note:

-Do not stack the welding inspection rule together with other tools to avoid scratches caused by deformation, blurred lines and damaged accuracy.

-Do not scrub the calibration with amyl acetate.

-Do not use the gap indicator on the multipurpose gauge as a tool.
